Product Details:
Payment & Shipping Terms:
|
| CPU: | Intel 13th Gen Socket Core I7-13700 | Products Status: | Stock |
|---|---|---|---|
| Type: | Desktop, Barebone System | Graphics Card Type: | Integrated Card |
| Wifi: | Wifi AX/AC | Warranty: | One Year |
| Case: | Metal | Cooling Solution: | With Fan |
About this item
| Size | 193 x 180 x 90mm |
| CPU | Intel 12th/13th Gen socket Core i3,i5,i7, pentium/Celeron CPU i3-12100, i3-13100 i5-12400/12500/12400T/12500T, i5-13400/13500/13400T/13500T i7-12700/12700T, i7-13700/13700T |
| Chipset group | INTEL B760 |
| Memory | 2* SO-DIMM DDR4 , max 64GB |
| Storage | M.2 2280 SATA/NVME SSD 1 x 2.5"HDD /SSD |
| Graphics | Intel® UHD Graphics 730/770 |
| Display Port | 1 x DP + 1 x VGA + 2 x HD/DP (can choose one of HDMI/DP) |
| Front I/O | 1 x USB 3.2 Gen2 Type-C (10Gbps) 1 x USB 3.2 Gen2 USB-C (20Gbps) 2 x USB 3.0 Gen 1 USB-A (5Gbps) 1 x Power button 1 x Combo(mic/audio) |

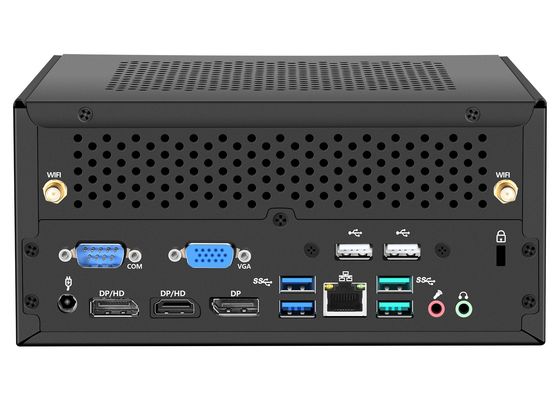

| Rear I/O | 1 x VGA + 1 x DP + 2 x HDMI/DP(can choose one of HDMI/DP) 1 x COM 2 x USB 3.0 Gen 1 USB-A (5Gbps) 2 x USB 3.2 Gen2 USB-A (10Gbps) 1x RJ45 (2.5Gbe LAN) 1 x Line in(MIC), 1 x Line out(Audio) 1 x DC in(19V4.74A or 19V6.15A) |
| Header on MB | 1 x USB 2.0 header |
| AMIBIOS | WAKE ON LAN / AUTO POWER ON / RTC / PXE |
| Wireless | m.2 2230 PCIe port, support WiFi ac/WiFi ax |
| VESA Mount | Support |
| LAN | 1 * RJ45 Intel I226-V Chipset(2.5G LAN) |
| Power Supply | DC 19V4.74A(i3 CPU or 35W TDP CPU), 19V6.15A(i5 or i7 CPU) |
