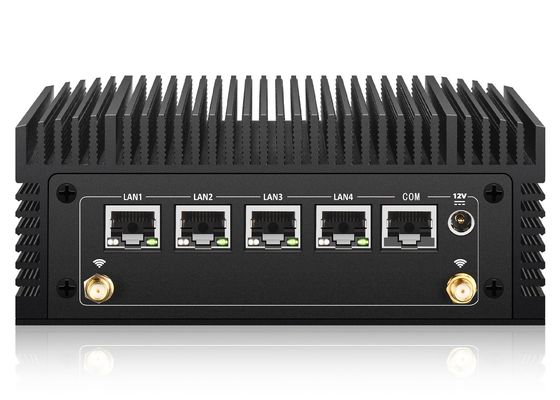

4 x Lan Industrial PC POE IN Soft Router N95/N97/N100 Fanless 16GB DDR5 512GB SSD

All Products

Industrial Mini PC (29)

Intel Celeron Mini PC (71)

Intel Core Mini PC (80)

Tower PC/Workstation (15)

Fanless Mini PC (57)

Thin Mini ITX Motherboard (13)

AMD Mini PC (30)

Gaming Mini PC (2)

Barebone Mini PC (40)

Intel Pentium Mini PC (16)

Mini PC Accessories (7)

Certification

I'm Online Chat Now

Contact Now

Detailed Product Description

About this item

Type		Descriptions
PROCESSOR		Intel® Alder lake-N Processor: N95(4C/4T, max 3.4GHz) TDP 15W N97(4C, max 3.6Hz) TPD 12W N100(4C/4T, max 3.4GHz) TDP 6W
GPU		Intel® UHD Graphics
MEMORY		1 x SODIMM DDR4 2666/2933/3200 Max 32GB
Wireless		WiFi: m.2 PCIe port
STORAGE		1 x M.2 2280 SATA SSD, 1 x 2.5'' inch SATA SSD/HDD
DISPLAY PORT		HDMI 2.0 + DP1.4
FRONT PANEL		Power Button 1 x USB3.0 Type-C 1 x USB3.0 4 x USB2.0 1 x SIM card (4G/5G) HDMI + DP
BACK PANEL		3 x 2.5G LAN Port (LAN1-LAN3), Intel I225 1 x 2.5G LAN Port (LAN 4) support POE IN 1 x COM232/485/422 1 x DC IN
Port on the MB		1 x SATAIII 1 x M.2 slot for 4G/5G module 1 x USB2.0 Header 1 x COM header: 2 x COM
POWER		Input:100- 240V AC Output: 12V3A DC
ACCESSORIES		Power Supply HDMI cable VESA mount
VESA		Support 70x70/100x100mm
BIOS		Wake On Lan, UEFI,Auto power on when power failure, PXE
SIZE		Chassis:155126.562mm
CHASSIS		Metal
OS SUPPORT		WIN11/WIN10/Linux

4 x Lan Industrial PC POE IN Soft Router N95/N97/N100 Fanless 16GB DDR5 512GB SSD 0

Build Advanced Router Firewall

With 5x Intel Gigabit LAN ports, it can be configured as a firewall, LAN or WAN router, VPN appliance, gateway device, DHCP Server, DNS Server, etc.

Build a Personal Computer

Connecting monitor, keyboard & mouse, it can work as a common desktop computer. It's a good solution due to its wide use and cost-effectiveness.


Lighter and Smaller Only 0.75kg 13.612.64.3cm (1.65lb 5.344.961.69 in), this Industrial Mini PC is so tiny that won’t take up your any space. Easy to carry or move to anywhere you want. Easy to be fixed on the back of the monitor with VESA mount.	Support More software This Fanless mini industrial computer was preinstalled with Win 10 Pro with Intel Celeron J4125 (4M Cache, 4 Cores 4 Threads, Base Frequency 2.00 GHz Burst Frequency 2.70 GHz), also support ubuntu and Linux.	100% Silent Environment the Industrial Fanless PC will be incredibly quiet and makes no noise, even quieter than the clock. On the other hand, Aluminum chassis design is more fashion.	More Possibilities Designed with 4 x 2.5G Ethernet Ports, our Industrial PC can be used in simultaneous access to several different LAN, so as to enjoy faster surfing speed. What’s more, thanks to 2 external antennas, the WiFi signal will cover a more wide range of areas.
