Product Details:
Payment & Shipping Terms:
|
| CPU: | Intel® 12th/13th Gen I3/i5/i7 CPU | Products Status: | Stock |
|---|---|---|---|
| Type: | Desktop, Barebone System | Graphics Card Type: | Integrated Card |
| Wifi: | Wifi AX/AC | Warranty: | One Year |
| Case: | Metal | Cooling Solution: | Fanless |
About this item
| Type | Descriptions | |||
| PROCESSOR | Intel® Core™ Alder Lake-P/U i3-1215U (6 core(2+4) 8 Threads, 3.3GHz~4.4GHz), TDP 15W i5-1240P (12 Core(4+8) 16 Threads, 3.3GHz~4.4GHz), TDP 28W i7-1260P (12 Core(4+8) 16 Threads, 3.4GHz~4.7GHz), TDP 28W |
Intel® Core™ Raptor Lake i5-1340P(12 Core(4+8) 16 Threads, 3.4GHz~4.6GHz), TDP 28 W i7-1360P(12 Core(4+8) 16 Threads, 3.7GHz~5.0GHz), TDP 28W |
||
| GPU | Intel® Iris® Xe Graphics Graphics max 1.4Ghz |
|||
| MEMORY | 2 x SODIMM DDR4 2666/4800Slots Max 64GB | 2x SO-DIMM DDR5-2666/5200MHz max support 64GB |
||
| Wireless | WiFi: m.2 PCIe port | |||
| LAN | 2 x RJ45: 2.5Gigabit LAN | |||
| STORAGE | 1 x M.2 2280 SATA/NVME SSD 1 x M.2 2280 NVME SSD |
|||
| DISPLAY PORT | 2 * HDMI2.0 (max support 4K@60Hz) 1* DP1.4(max supprot 4K 4096x2304@60Hz) 1* Thunderbolt 4 Type-C |
|||
| FRONT PANEL | 1 x Power Button 4 x USB3.0 2 x USB2.0 1 x Thunder bolt 4 type-C 1 x MIC IN 1 x Line out |
|||

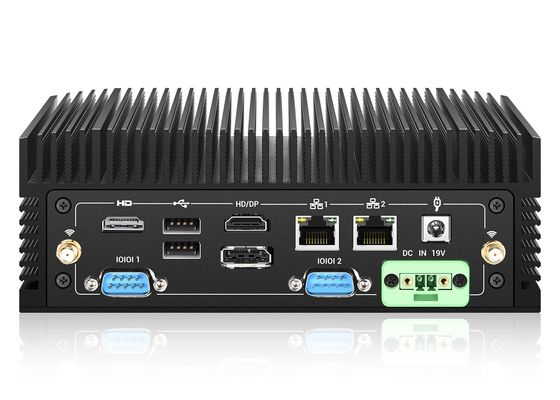

| BACK PANEL | 2 x RJ45 Gigabit LAN port 1 x COM232, 1 x COM485 2 x HDMI 2.0 1 x DP1.4 2 x USB3.0 1 x DC IN/Phoenix Connector |
|||
| POWER | Input:100- 240V AC Output: 19V4.74A DC / 19V3.42A DC DC voltage input range: 12-19V |
|||
| ACCESSORIES | Adapter HDMI cable VESA mount |
|||
| VESA | Support 70x70/100x100mm | |||
| BIOS | Wake On Lan, UEFI,Auto power on when power failure, PXE | |||
| SIZE | Chassis: 185*127.5*67mm | |||
| CHASSIS | Alluminum | |||
| OS SUPPORT | WIN11/WIN10/Linux | |||
