Product Details:
Payment & Shipping Terms:
|
| Features: | Lower Power Consumption | Product Name: | AC6-M J4125-05 |
|---|---|---|---|
| GPU: | Intel UHD Graphics 600 | Storage: | EMMC 32GB/64GB M.2 2242 SSD |
| Material: | Plastic | Memory: | LPDDR4 8GB |
| Package: | Giftbox | OEM: | Support |
| High Light: | LPDDR4 Intel Celeron Mini PC,J4125 Intel Celeron Mini PC,J4125 intel micro pc |
||
LPDDR4 8GB Intel Celeron Mini PC Gemini Lake J4125 CPU 128 SSD Pocket Size
Jasper Lake Pocket size PC AC6-M
On Board memory: LPDDR4 4GB, 8GB
Integrated Cooling Solution
DisplayPort: HDMI
Supports M.2 Wi-Fi ac/ax module
Supports M.2 2242 SSD
Overview
Intel Jasper lake J4125
Brand new AC6-M supports the Intel Jasper Lake CPU J4125
On Board memory: LPDDR4 max support 8GB
Tiny but MightyGB
AC8 features with 60*60*45mm tiny volume, on board 8GB memory, and widely hardware flexibility.
Optional Wi-Fi Module
AC8 supports optional Intel® M.2 Wi-Fi & Bluetooth Module

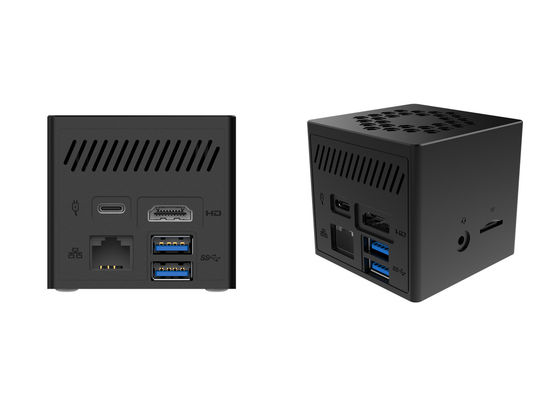

Rich USB Connectivity
Front Side
power button
1 * HDMI
2 * USB3.0
1 * LAN(gigabit)
1 * Type-C(power)
Advantages of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
1. High reliability, continuous production, and decreasing failure rate.
2. Intel® Quad Core with Frequency of 2.0-2.7GHz.
3. Support hardware reset.
4. Work well in the industrial environment.
6. Be able to work with industrial cameras.
Rich I/O ports of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD
Include: 1 * HDMI; 2 * USB; 3.01 * LAN(gigabit); 1 * Type-C(power
Mechanical of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
Kensington Lock: Yes
LED Indicators: Power, Power Supply
AC Adaptor : DC12V2.0A
Miscellaneous
Supported OS: Windows 10 Home/Pro/11/Linux
Accessories of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
1 x AC adapter
1 x User manual
1 x HDMI cable
OEM Service:
Logo printing on the PC case/Sticker printing/BIOS setting(PXE/ Auto-power-on/Wake up on Lan)/OS pre-install and info setting.
Specifications of LPDDR4 4GB Intel Celeron Mini PC Intel Gemini Lake J4125 CPU 128 SSD:
| Type | Descriptions | |||
| PROCESSOR | Intel® Gemini lake Processor: TPD 6W | Intel® Gemini lake Processor: TPD 10W | ||
Celeron: N4020 (Dual core, 1.1GHz~2.8GHz) Celeron: N4100 (Quad core, 1.1GHz~2.4GHz) Celeron: N4120 (Quad core, 1.1GHz~2.6GHz) Intel® Pentium Silver Processor: N5000(Quad core, 1.1GHz~2.7GHz) |
Celeron: J4125 (Quad core, 2.0GHz~2.7GHz) Intel® Pentium Silver Processor: J5005 (Quad core, 1.5GHz~2.8GHz) |
|||
| GPU | UHD Graphics 600--Celeron CPU UHD Graphics 605--Pentium CPU |
|||
| MEMORY | 4GB/ 8GB DDR4(Onboard) | |||
| STORAGE INTERFACE | supports 1xM.2 2242 SSD; 1x Micro SD |
|||
| ETHERNET | WiF ac/g/b/n + Gigabit LAN | |||
| AUDIO | 3.5mm audio output | |||
| BACK I/O | 1 * HDMI 2 * USB3.0 1 * Type-C for power 1* RJ45 |
|||
| SIDE I/O | 1 * kenston slot 1 * Micro SD 1 * 3.5mm Earphone port |
|||
| POWER | Input:100- 240V AC Output: 12V2.0A DC |
|||
| ACCESSORIES | Quick User Guide Adapter Power cord |
|||
| SIZE | Chassis:63*63*58mm | |||
| CHASSIS | Plastic | |||
| OS SUPPORT | Win 11/Linux | |||
