Product Details:
Payment & Shipping Terms:
|
Product Name: | AC8-M N6005 CPU | Display Port: | Dual HDMI |
---|---|---|---|
Storage: | M.2 2280 SSD(32/64/128GB)/eMMc 64GB | Wifi: | M.2 PCIe Slot |
Memory: | LPDDR4 4/8 GB | ETHERNET: | RJ45: Gigabit LAN X 1 Or 2 |
High Light: | Pentium Silver Intel Celeron Mini PC,N6005 Intel Celeron Mini PC,Dual HDMI N6005 Mini PC |

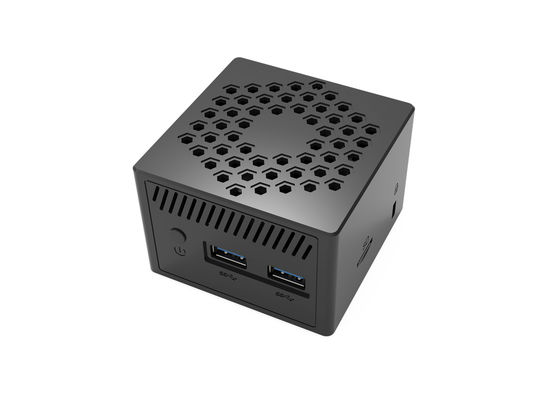

Intel Celeron Mini PC Pentium Silver N6005 CPU Dual HDMI Pocket size AC8-M
Intel® Jasper Lake Processor: TPD 10W
Intel® Pentium Silver Processor: N6005 (Quad core, 2.0GHz-3.3GHz)
Gigabit Ethernet & 802.11ac Wi-Fi
The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features dual-band 802.11ac Wi-Fi so that users may access network connectivity using wireless technology
2 Display ports
The system provide 2 x HDMI, support 2 monitor display at the same.
Rich I/O ports of Intel Celeron Mini PC Pentium Silver N6005 CPU Dual HDMI Pocket size AC8-M:
Include: 1 x MICRO SD, kenstong lock, 1 x RJ45 Gigabit LAN port, 1 x USB3.0, 2 x HDMI 3.0, 1 x DC IN, 1 x 3.5mm combo audo/mic
4K video out for 3 monitors via HDMI 2.0 x 1; VGA x 1; DP x1
Description of Intel Celeron Mini PC Pentium Silver N6005 CPU Dual HDMI Pocket size AC8-M:
Computing System
Processor: Intel® Celeron Jasper Lake N5100 Quad Core
Memory: LPDDR4 4GB/ 8GB
Graphics
Video Output: 2*HDMI 2.0 (up to 3840x2160@60Hz)
Storage
M.2 : m.2 2242 SSD
I/O Ports
Audio: Stereo output
Loss-less Bitstream via 2*HDMI
Microphone in
USB Port: 3 x USB 3.0;
LAN: 1 x 10/100/1000Mbps
Antenna: Internal, dual antenna
Wifi: 802.11ac(onboard)
Bluetooth: 5.0
Mechanical of Intel Celeron Mini PC Pentium Silver N6005 CPU Dual HDMI Pocket size AC8-M:
Kensington Lock: Yes
LED Indicators: Power, Power Supply
AC Adaptor : 12V2.5A DC
Dimensions: 72*72*46mm
Case Mounting: VESA Mount(70mm*70mm/100*100mm)
Miscellaneous
Supported OS: Windows 10 Home/Pro/11/Linux
Accessories of Intel Celeron Mini PC Pentium Silver N6005 CPU Dual HDMI Pocket size AC8-M:
1 x Adapter
1 x HDMI Cor
OEM Service of Intel Celeron Mini PC Pentium Silver N6005 CPU Dual HDMI Pocket size AC8-M:
Logo printing on the PC case/Sticker printing/BIOS setting(PXE/ Auto-power-on/Wake up on Lan)/OS pre-install and info setting.
Specifications of Intel Celeron Mini PC Pentium Silver N6005 CPU Dual HDMI Pocket size AC8-M:
Type | Descriptions | |||
PROCESSOR | Intel® Jasper lake Processor: TPD 10W | Intel® Jasper lake Processor: TPD 6W | ||
Celeron: N4505 (Dual core, 2.0GHz~2.9GHz) Celeron: N5105 (Quad core, 2.0GHz~2.9GHz) Intel® Pentium Silver Processor: N6005 (Quad core, 2.0GHz~3.3GHz) |
Celeron: N4500 (Dual core, 1.1GHz~2.8GHz) Celeron: N5100 (Quad core, 1.1GHz~2.8GHz) Intel® Pentium Silver Processor: N6000 (Quad core, 1.1GHz~3.3GHz) |
|||
GPU | Intel® UHD Graphics | |||
MEMORY | LPDDR4 4GB/ 8GB | |||
Wireless | WIFI: m.2 PCIe slot | |||
WLAN | RJ45: Gigabit LAN x 1 or 2 | |||
STORAGE | 1 x M.2 2242 SSD + eMMC(64/128GB) | |||
DISPLAY PORT | HDMI x 2 | |||
FRONT PANEL | 1 x Power Button 2 x USB3.0 |
|||
SIDE PANEL | 1 x MICRO SD, kenstong lock | |||
BACK PANEL | 1 x RJ45 Gigabit LAN port 1 x USB3.0 2 x HDMI 3.0 1 x DC IN 1 x 3.5mm combo audo/mic |
|||
POWER | Input:100- 240V AC Output: 12V2.5A DC |
|||
ACCESSORIES | Adapter HDMI Cord |
|||
SIZE | Chassis:72*72*46mm | |||
CHASSIS | PLASTIC | |||
OS SUPPORT | WIN11/WIN10 |
