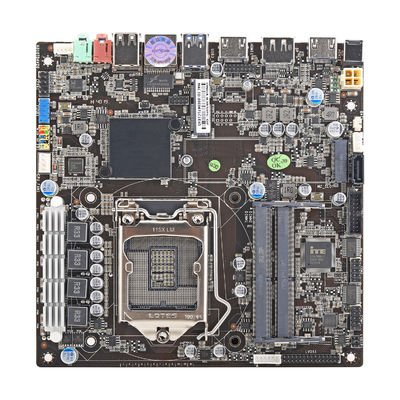

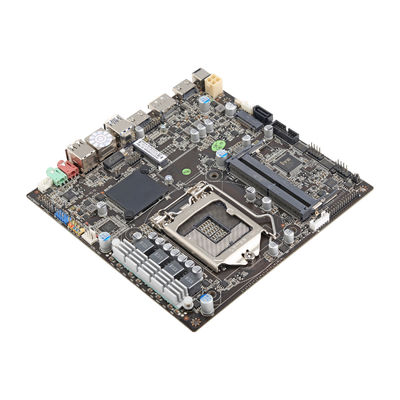

B365 Thin Mini ITX Motherboard Support I3-9100,I3-8100 CPU With HDMI X 2 +DP Display Port

B365 Thin Mini-ITX Motherboard Support I3-9100,I3-8100 CPU, With HDMI X 2 +DP Display Port

Motherboard Specification:

SIZE: 170mm x 170mm

CHIPSET: Intel® B365

CPU: Supports Intel® 9th/8th Gen LGA1151 Processors(i3-8100/9100, i5-8400/9400,i7-8700/9700, Pentium..)

Graphics: Intel® UHD Graphics

Memory: 2 X SO-DIMM DDR4-2666/2400,max.32GB

Storage: M.2 2280: PCI-E 3.0 X4(NVME SSD)SSD & SATA3.0 SSD

1 X SATA3.0 6Gb/s

USB: 2 X USB3.0, 2 X USB2.0

LAN: Realtek 8111H chipset support Gigabit LAN

Support WAKE ON LAN

WiFi: Mini PCIe port

Audio: Realtek ALC662

Rear I/O PIN on the motherboard

1X DC (19V ) 1 X USB2.0pin can support 2 x USB2.0 port

1 X USB3.0 pin can support 2 x USB3.0 port

2 X HDMI 1 X 4Pin for FAN power

1 X DP 2 X COM

2 X USB3.0 1 X LVDS

1 X RJ-45 1 X audio/mic pin

2 X USB2.0

2 X USB3.0

1 X Audio out

1 X MIC in

BIOS AMI BIOS,BIOS support Legacy + UEFI

OS Windows10 , Linux

Appliance

• industrial motherboard
• POS motherboard
• ATM kiosk motherboard
• AD player motherboard
• queuing machine motherboard
• Car pc motherboard

Advantage:
1. Embedded high performance industrial motherboard.
2. All solid capacitor design, onboard DDR4 memory, maximum up to 32GB.
3. support Mini PCI electronic hard disk, more efficiency.
4. Support power booting/plug and play; VGA&LVDS Asynchronous with show.
5. Reliable, High stability, Low noise, low power consumption. Perfectly suitable for AIO machine/IPC/VOD/Car PC/HTPC etc.
6. Certificate: CE; FCC; RoHS
