Product Details:
Payment & Shipping Terms:
|
Keyword: | Thin Client MINI PC | Type: | Embedded Computer |
---|---|---|---|
Processor: | AMD Ryzen 3200G,3400G | Video Output: | HDMI 2.0 (up To 4096x2304@60Hz), VGA |
Color: | Black | Size: | 2 X DDR4 SO-DIMM Slot (up To 32GB) |
Highlight: | small form factor mini pc,amd apu mini pc |

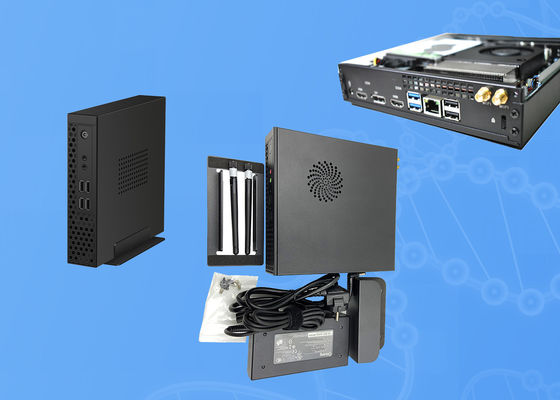

Excellent Heat Dissipation AMD Mini PC Support M.2 2280SSD And 2.5inch HDD
Characteristics
1. Lowconsumption,environmental protection,adopting AMD Ryzen 3200G,3400G CPU ;
2. High Quality & Reasonable Price , fast operating speed ,designed for office users, individualusers;
3. Simple design , simple dismantled .There are two brackets , can be hung back to the monitor;
4. Saving space , the volume is only one-eighth of the ordinary PC box.
Fashionable , beautiful , pure silver color shell design.
Description:
Computing System
Processor: AMD Ryzen 3 3200G(Quad core, up to 4.0GHz)
AMD Ryzen 5 3400G(Quad core, up to 4.2GHz)
Chipset: AMD A320
Memory: 2 x DDR4 SO-DIMM Slot (up to 32GB)
Graphics
Graphics Engine: Radeon™ Vega 8 Graphics(3200G)
Radeon™ RX Vega 11 Graphics(3400G)
Video Output: HDMI 2.0 (up to 4096x2304@60Hz), VGA
Storage
Hard Drive: 1 x 2.5-inch SATA 6.0 Gbps SSD/HDD slot
M.2 : m.2 2280 SATA SSD
I/O Ports
Audio: Stereo output
Loss-less Bitstream via HDMI /VGA
Microphone in
USB Port: 4 x USB 3.0(In the rear)
4 x USB 2.0(In the front)
LAN: 1 x 10/100/1000Mbps
Antenna: Internal, dual antenna
Wifi: m.2 PCIe 2230 slot
Bluetooth: support
Mechanical
Kensington Lock: Yes
LED Indicators: Power, Power Supply
AC Adaptor : DC19V4.7A(3200G), DC19V6A(3400G)
Cooling system: Fan cooling
Dimensions: 190mm x 180mm x 40mm/1.3L
Case Mounting: Stand hold
Miscellaneous
Supported OS: Windows 10 Home/Pro, Ubantu
Accessories: 1 x AC adapter
1 x User manual
1 x stand hold
Product Show
