Product Details:
Payment & Shipping Terms:
|
Graphics Engine: | Intel HD Graphics 500 (Integrated) | CPU: | Quad Core J3455 |
---|---|---|---|
Memory: | LPDDR3 Up To 8GB | USB Port: | 2 X USB 3.0 |
VESA: | 75*75mm/100*100mm | WAKE ON LAN: | Support Wake On Lan |
Material: | Plastic | OS: | Win 10. Linux |
Size: | 128*128*52mm | ||
High Light: | quad core mini pc,micro desktop pc |
Fanless MINI PC AC1-Z Quad Core Intel Celeron J3455 4GB Memory Wifi BT Win 10 Linux
Features
Beautiful: Industrial aesthetic design and Reasonable interface layout;
Noiseless: Fanless system, low consumption, 0.00dB noise;
Intel Apollo lake J3455 Processor, Quad core, up to 2.3GHz
Powerful passive cooling for silent performance
A 180 degrees of breathable ventilation
On board DDR3 4GB/8GB
Application:
1. Independent Personal Computer: With high-end hardware, can be used as an independent computer; also can be used as a parlour computer connecting the TV Set to watch video, surf the internet.
2. Business office computer: Cloud terminal used in business is extremely different from pc in surfing the net or display. Such as: chatting online.IPII533 is tiny and portable, power saving, highly block atmosphere, overall functions and high speed.
3. Education Computer: Used in Multimedia Teaching system, can install teaching ware for students and teachers.
4. Industrial Computer: Industrial standard design, High stability and reliability; with RS232 serial port for more industrial needs; solid state design, fanless design.
Description:
Computing System
Processor: Intel Apollo lake Celeron J3455(quad-core 1.5GHz, up to 2.3GHz)
Chipset: Intel
Memory: 4GB/8GB DDR3(on board)
Graphics
Graphics Engine: Intel HD Graphics 500 (Integrated)
Video Output: HDMI 1.4a(up to 3840x2160@30Hz)
Storage
Hard Drive: 1 x 2.5-inch SATA 6.0 Gbps SSD/HDD slot
M.2 : m-SATA SSD
Card Reader: 3-in-1 (SD/SDHC/SDXC)
I/O Ports
Audio: Stereo output
Loss-less Bitstream via HDMI
Microphone in
USB Port: 2 x USB 3.0
2 x USB 2.0
LAN: 1 x 10/100/1000Mbps
Antenna: Internal, dual antenna
Wifi: 802.11ac(onboard)
Bluetooth: 4.1
Mechanical
Kensington Lock: Yes
LED Indicators: Power, Power Supply
AC Adaptor : DC12V25A
Cooling system: Passive cooling
Dimensions: 129mm x 129mm x 48mm (5.08in x 5.08in x 1.89in)
Case Mounting: VESA Mount
Miscellaneous
Supported OS: Windows 10 Home/Pro, Ubantu
Accessories: 1 x AC adapter
1 x User manual
1 x VESA Mount

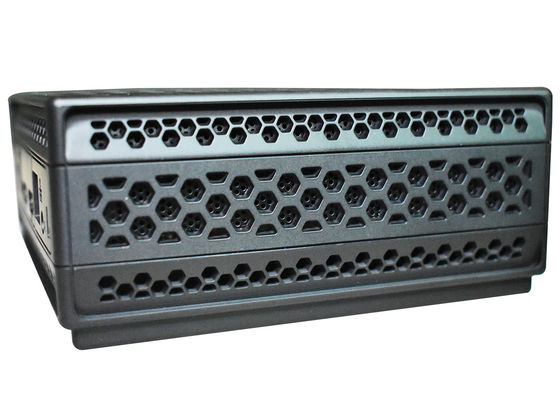

Fanless design
Aplications:

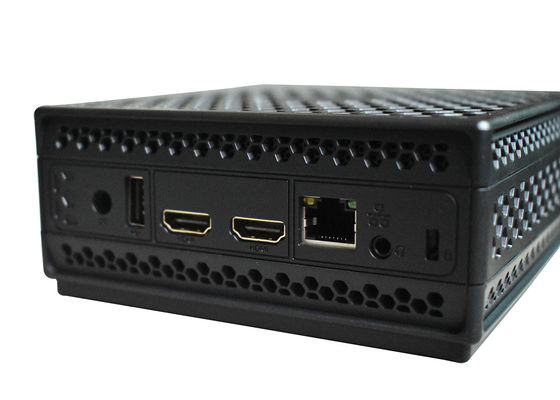

Rich I/O ports
4K video out for 2 monitors via HDMI 2.0 x 2
