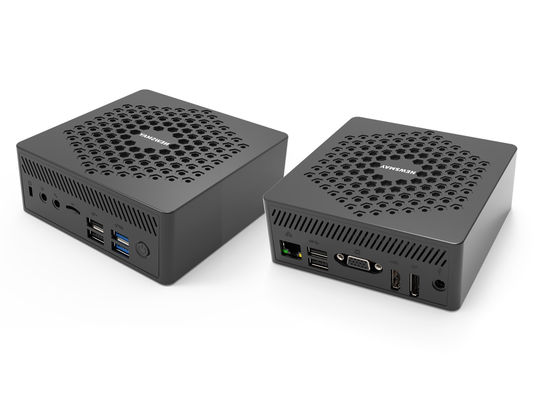

WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0

WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0
WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0

Large Image :  WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: OEM
Certification: ROHS, CE
Model Number: AC8

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: $135/pc
Packaging Details: Gift Box/Carton
Delivery Time: sample 5 days, production 30days
Payment Terms: TT/LC/Paypal
Supply Ability: 20k per month
Detailed Product Description
CPU: Jasper Lake: N4505 Product Name: AC8-N4505-01
Micro SD Slot: Up To 512GB SIZE: Chassis:123 X 123 X 45mm
Wireless: M.2 PCIe Slot, Wifi 6 ETHERNET: LAN: Gigabit LAN
ACCESSORIES: Adapter, HDMI Cord, VESA Mount
High Light:

WIFi6 Fanless Mini PC

,

N4505 Fanless Mini PC

,

WIFi 6 Mini PC N4505 CPU

WIFi 6 Fanless Mini PC Desktop computer N4505 CPU HDMI DP VGA



Are you still running your PC on a giant host?

  • Tangled cables, a huge footprint, and loud noise make moving extremely difficult.
  • How about a tiny PC host that you can take between home and work?
  • Are you looking for a sleek, stylish Mini PC that sets yours apart from everyone else's?

1. Small and Portable

Its volume is typically 1/30 that of a traditional desktop host, making it ideal for mobile offices.

2. Space-saving

With a VESA mount attached to the back of the display or TV screen, it can be transformed into an all-in-one PC in seconds, freeing up space for home life.

3. Excellent Performance

The performance of Mini PCs has reached a mature state. Most Mini PCs today can meet the majority of users' office, entertainment, industrial control, video playback, and other basic needs.

4. Energy-saving and Power-saving

Mini PCs use low-power processors, and their thermal design power (TDP) is typically between 6W and 15W, whereas the average power consumption of a traditional large desktop host is 100W~150W, which is ten times or even more than the power consumption of a Mini PC.

5. Fashionable Look

We use honeycomb design on the shell, it's Newsmay's patent. The exquisite and minimalist design makes your life and work more enjoyable.



Fanless Thermal Cooling:



The Fanless AC8 Mini PC employs a passive cooling solution to ensure safe operation and stable performance even throughout prolonged operation, while producing absolute minimal noise to guarantee zero disturbance during usage. A passive thermal cooling system reduces power consumption  required by a fan as well as the cost of replacing fans on-site. Use solid state disks for an operational platform completely free of noise.

WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0 0



Three Output Display

The Fanelss AC8 provides HDMI 2.0b, DisplayPort 1.4a, and VGA Outputs to Support Three Independent Displays for Resolutions up to 4K/60 Hz.

 WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0 1

Easily to update

If you want to upgrade your mini PC, all need have to is remove 2 screws at the bottom cover to gain access and replace the memory modules and 2280 SSD storage slots.

  WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0 2

WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0 3

Rich I/O ports of Fanless Mini PC Intel Jasper Lake N4500 CPU Window 11 WIFi 5:

Rich Input and Output ports ensure AC8 can be ideal for industrial or
commercial use, 6 x USB ports suitable for out peripheral equipment that
need USB power & data connection.



Include: 4xUSB 3.0;2xUSB 2.0; 1xHDMI; 1xVGA; 1xDP; 1xMic; 1xAudio; 1xLock; 1x Micro SD; 1xLAN

WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0 4

4K video out for 3 monitors via HDMI 2.0 x 1; VGA x 1; DP x1

WIFi6 Fanless Mini PC Box PC N4505 32GB RAM HDMI DP VGA 4XUSB3.0 5



Description of WIFi 5 Fanless Mini PC Intel Jasper Lake AC8 N5100 CPU HDMI DP VGA Innovative Honeycomb:



Computing System

Processor: Intel®  Celeron Jasper Lake N5100 Quad Core

Memory: 2 x DDR4-2666/2400 SODIMM Slot (up to 32GB)



Graphics

Graphics Engine: Intel UHD Graphics (Integrated)

Video Output: HDMI 2.0 (up to 3840x2160@60Hz); VGA; DP


Storage

M.2 : m.2 2280 up to 512GB SSD

Card Reader: 3-in-1 (SD/SDHC/SDXC)



I/O Ports
Audio: Stereo output
Loss-less Bitstream via HDMI VGA and DP
Microphone in

USB Port: 4 x USB 3.0; 2x USB 2.0

LAN: 1 x 10/100/1000Mbps
Antenna: Internal, dual antenna
Wifi: 802.11ac(onboard)
Bluetooth: 5.0





Mechanical of WIFi 5 Fanless Mini PC Intel Jasper Lake AC8 N5100 CPU HDMI DP VGA Innovative Honeycomb:



Kensington Lock: Yes

LED Indicators: Power, Power Supply

AC Adaptor : DC12V4A

Cooling system: Passive cooling

Dimensions: 127mm x 127mm x 48mm (5.08in x 5.08in x 1.89in)

Case Mounting: VESA Mount(70mm*70mm/100*100mm)





Miscellaneous



Supported OS: Windows 10 Home/Pro/11/Linux



Accessories of WIFi 5 Fanless Mini PC Intel Jasper Lake AC8 N5100 CPU HDMI DP VGA Innovative Honeycomb:



1 x AC adapter

1 x User manual

1 x VESA Mount (with 4 screws)

1 x HDMI cable



OEM Service:



Logo printing on the PC case/Sticker printing/BIOS setting(PXE/ Auto-power-on/Wake up on Lan)/OS pre-install and info setting.



Specifications:



Type Descriptions
PROCESSOR Intel® Jasper lake Processor: TPD 10W Intel® Jasper lake Processor: TPD 6W

Celeron: N4505 (Dual core, 2.0GHz~2.9GHz)
Celeron: N5105 (Quad core, 2.0GHz~2.9GHz)
Celeron: N5095(Quad core, 2.0GHz~2.9GHz,15W)
Intel® Pentium Silver Processor: N6005 (Quad core, 2.0GHz~3.3GHz)
Celeron: N4500 (Dual core, 1.1GHz~2.8GHz)
Celeron: N5100 (Quad core, 1.1GHz~2.8GHz)
Intel® Pentium Silver Processor: N6000 (Quad core, 1.1GHz~3.3GHz)
GPU Intel® UHD Graphics
MEMORY 2 x SODIMM DDR4 Slots Max 32GB
SIM CARD 1 x 4G SIM Card Slot
ETHERNET LAN: Gigabit LAN
WIFI: m.2 PCIe slot
STORAGE INTERFACE 1 x M.2 2280 SSD
DISPLAY PORT HDMI +DP +VGA
FRONT PANEL 1 x Power Button
2 x USB3.0
2 x USB2.0
1 x Micro SD
1 x MIC IN
1 x Line out
BACK PANEL 1 x RJ45 Gigabit LAN port
2 x USB3.0
1 x VGA
1 x HDMI 2.0
1 x DP
1 x DC IN
WIFI m.2 PCIe slot
POWER Input:100- 240V AC
Output: 12V2.5A DC
ACCESSORIES Adapter
HDMI Cord
VESA mount
VESA Support 70x70/100x100mm
SIZE Chassis:125*125*45mm
CHASSIS PLASTIC
OS SUPPORT WIN11,Linux
